Save 20%500A DC 12V SPST Auto Start Contactor Heavy Current Relay High Current Starter Relay
Product details
SPECIFICATIONS
Brand Name: NONE
Choice: yes
High-concerned chemical: None
KC Certification Information: Unavailable (seller does not provide)
Model Number: Heavy current relay
Origin: Mainland China

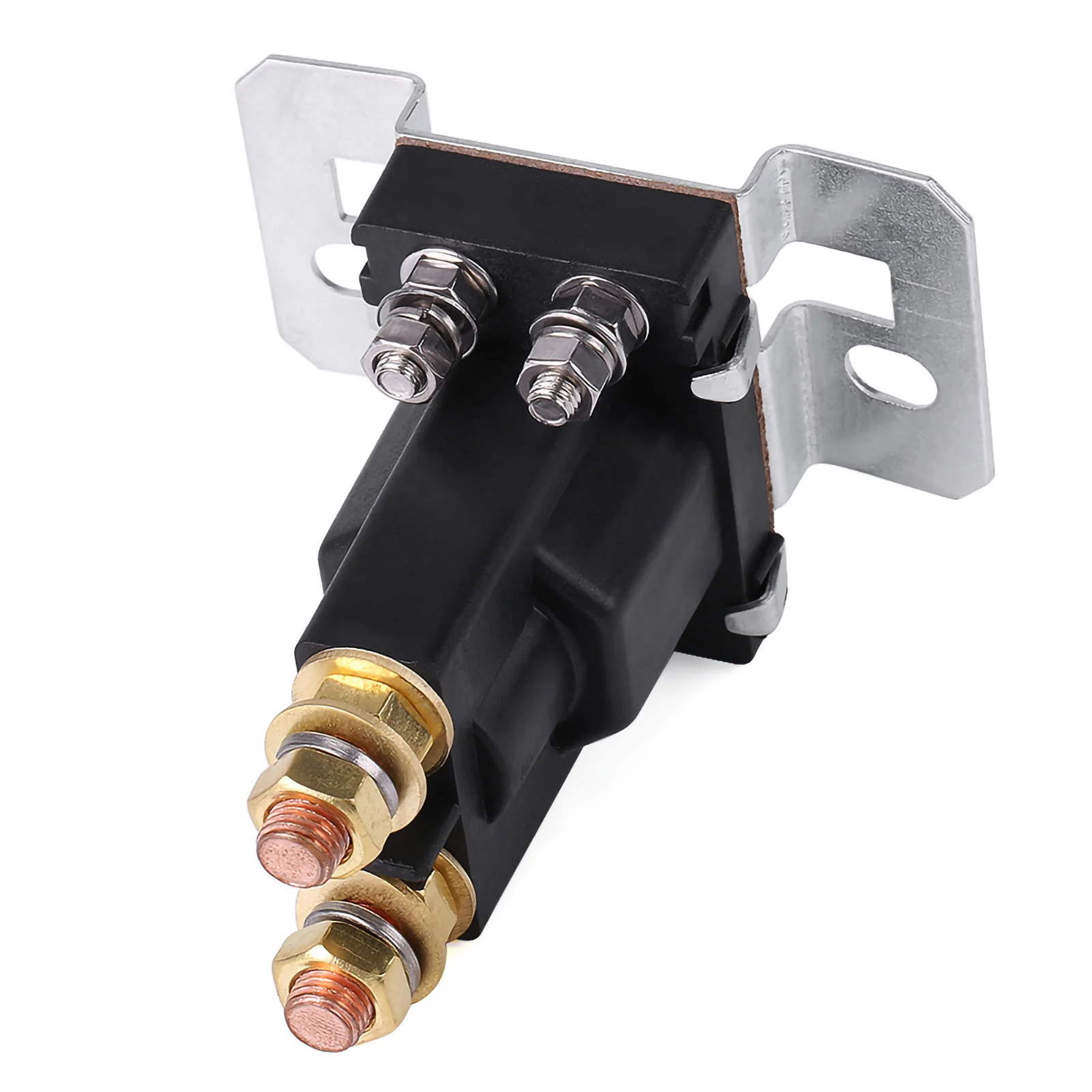

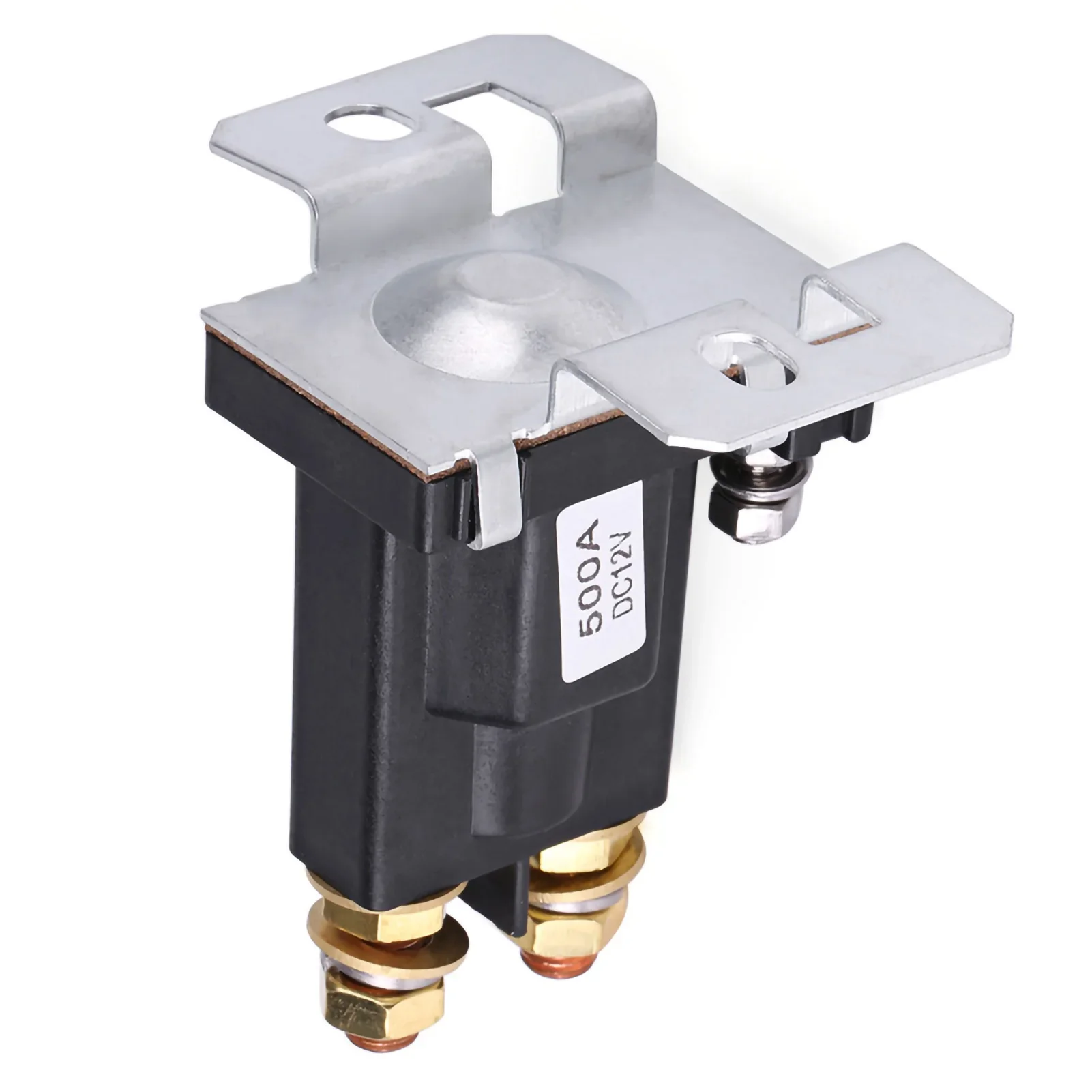

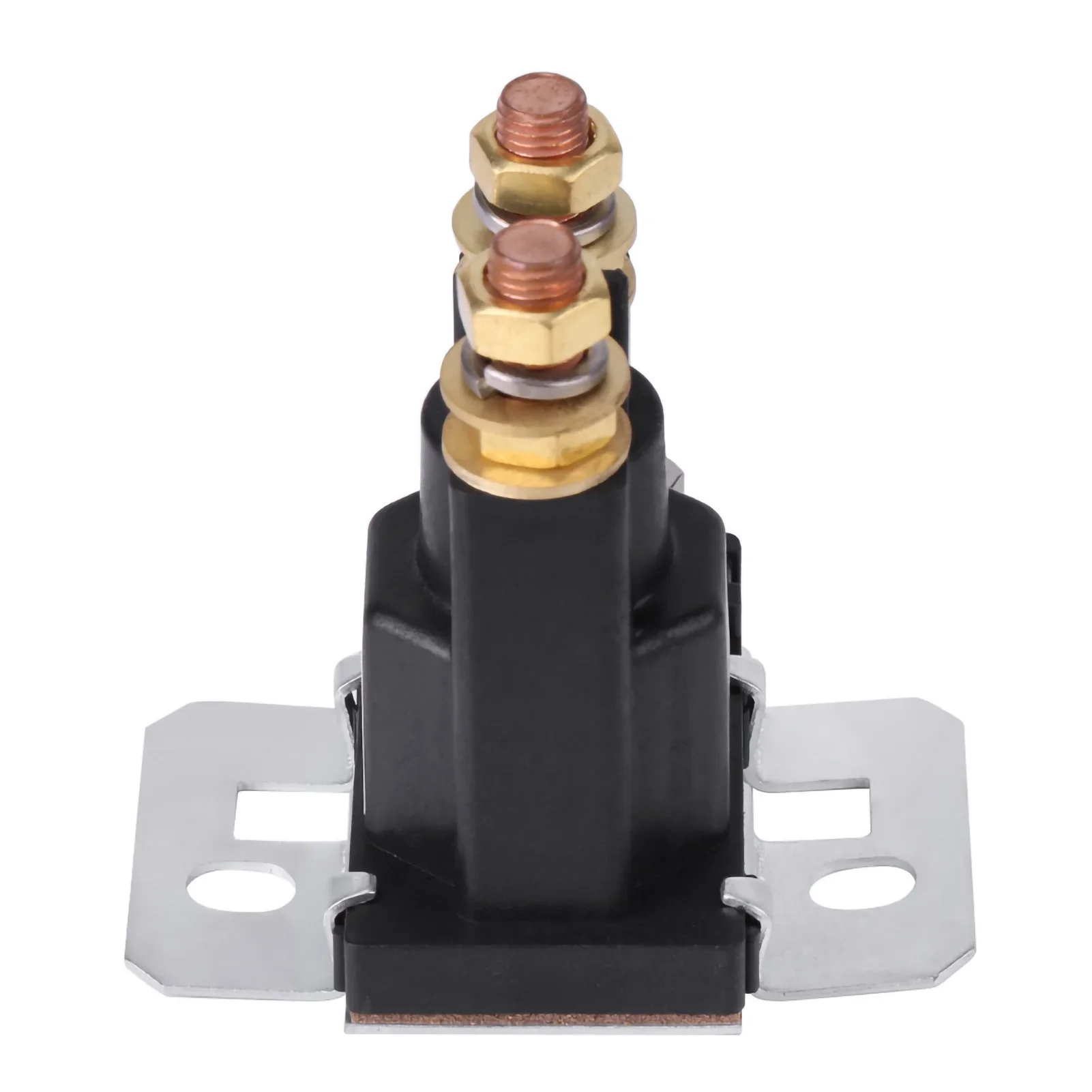

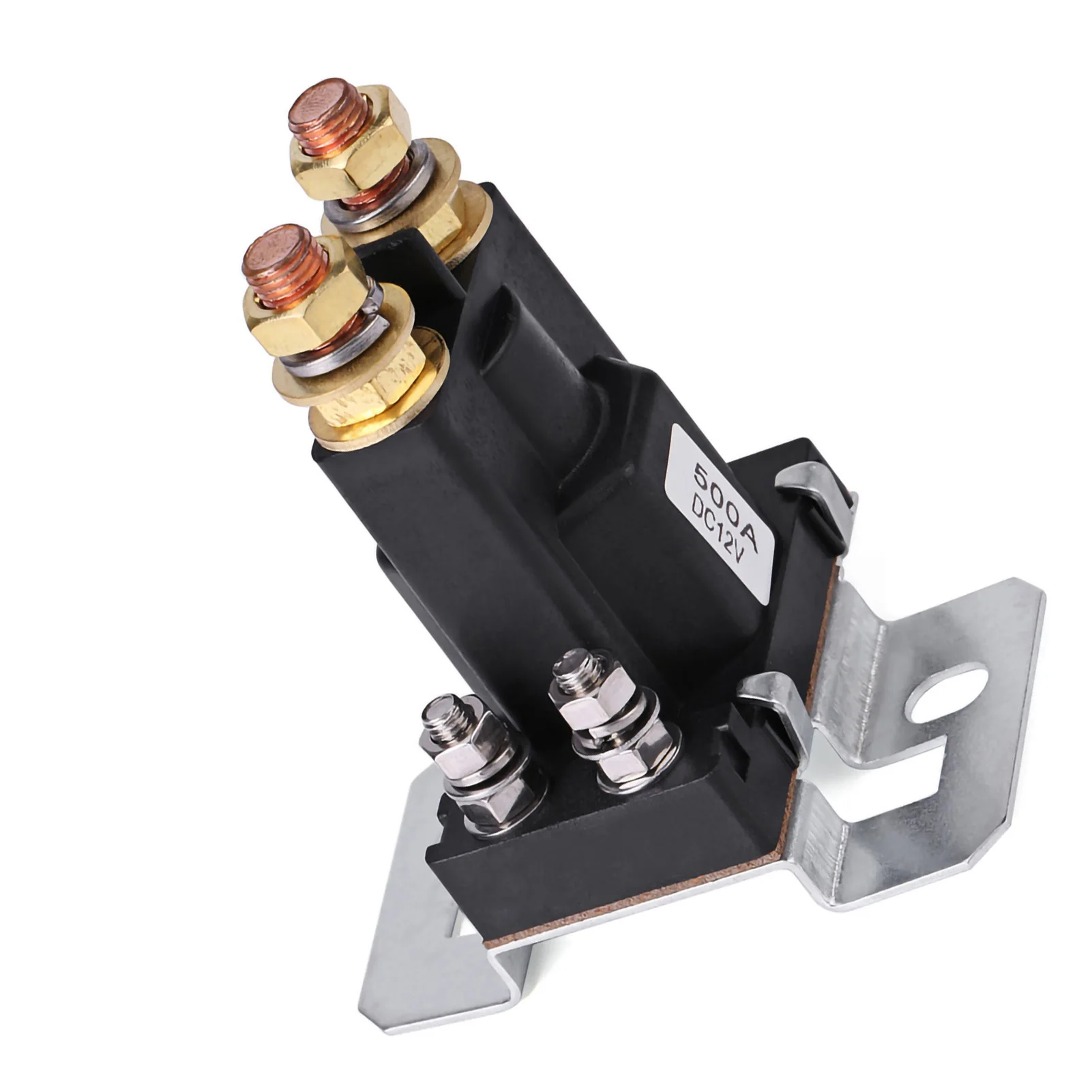

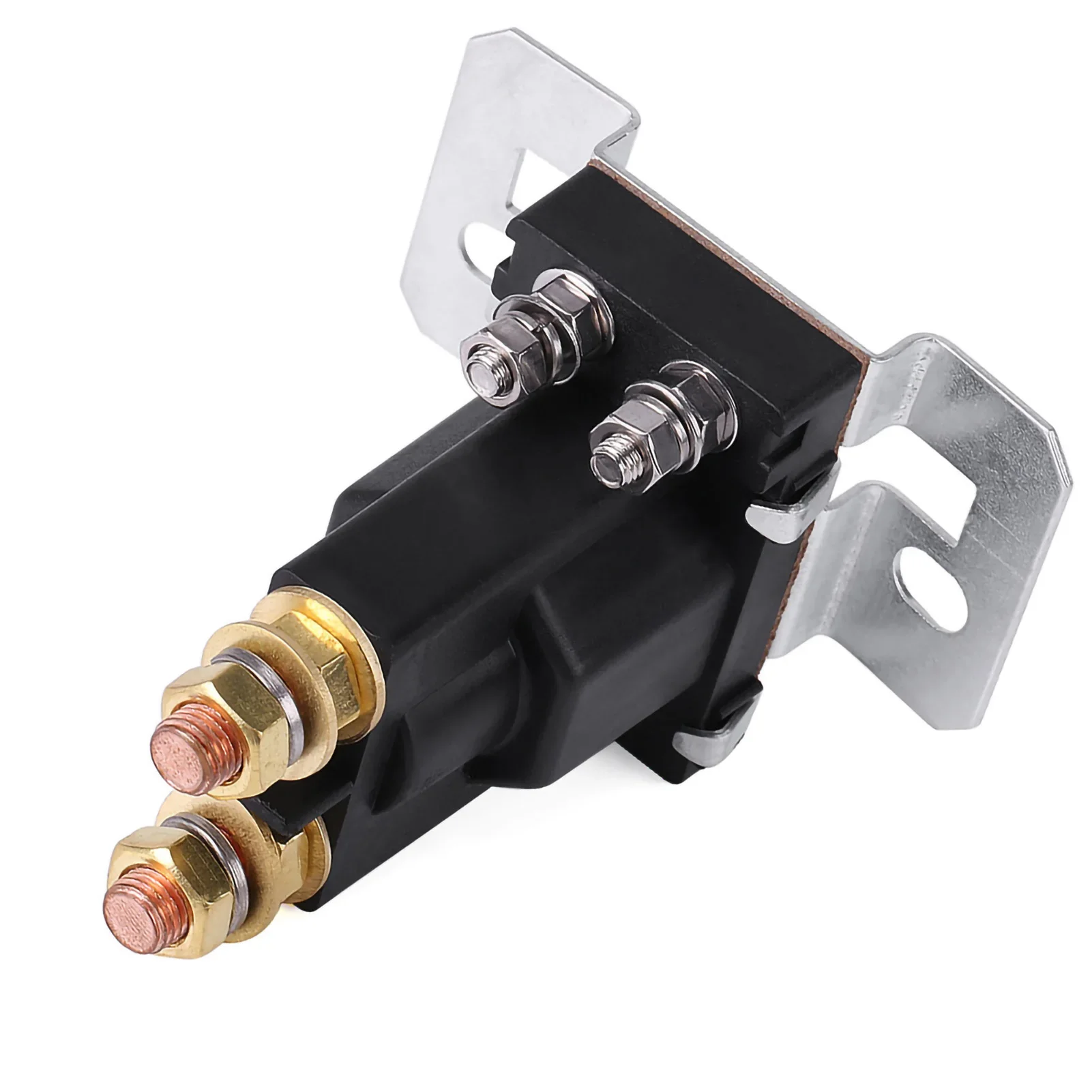

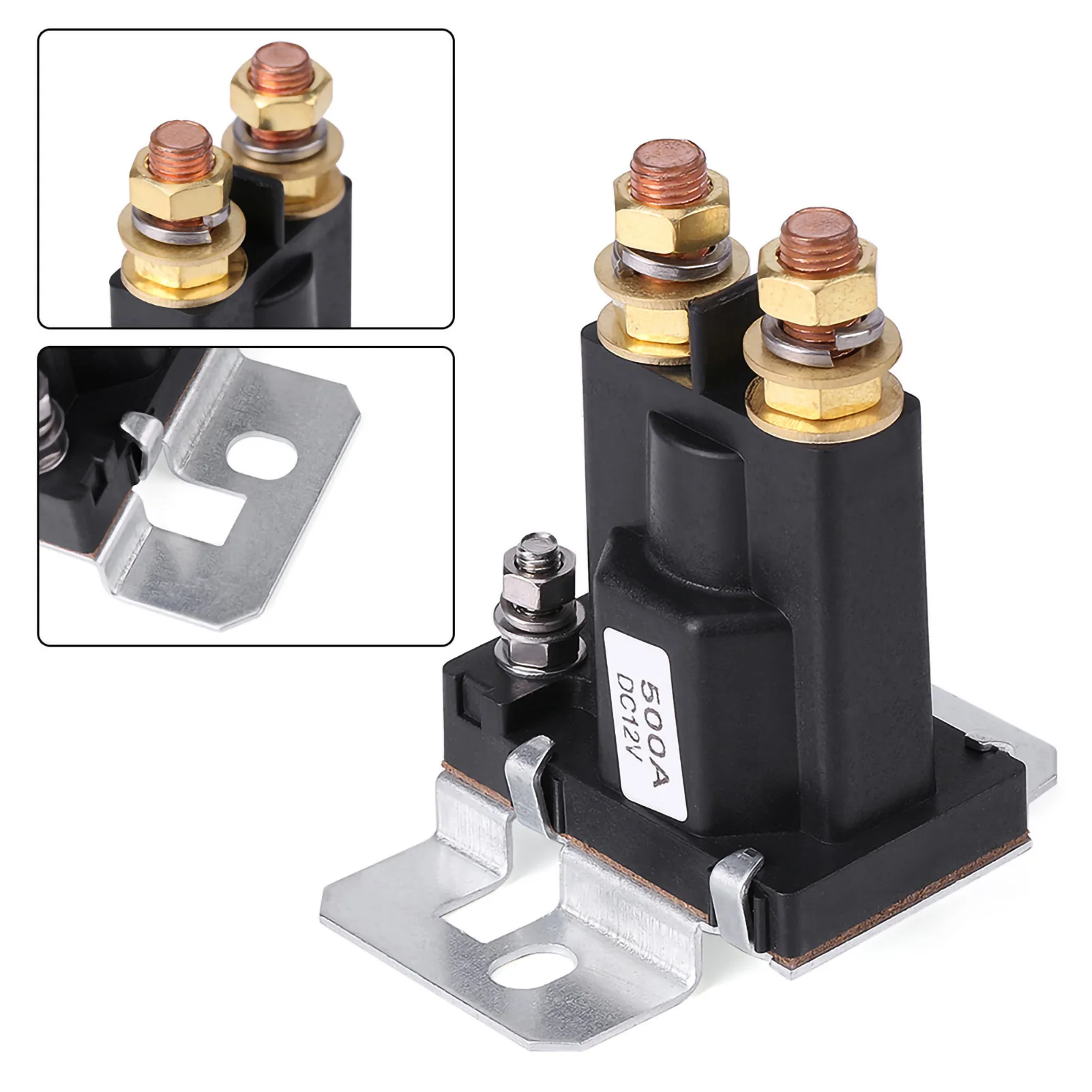

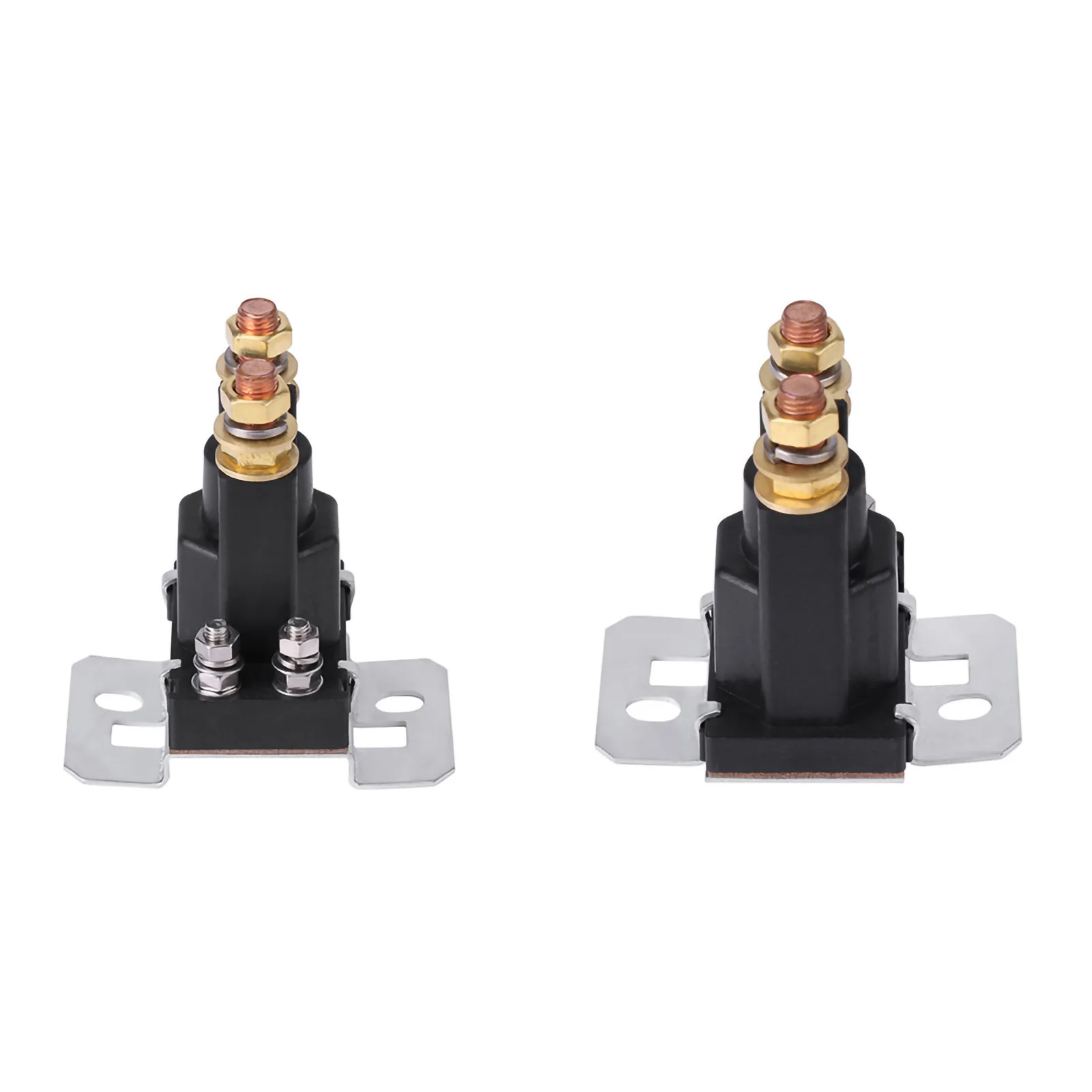

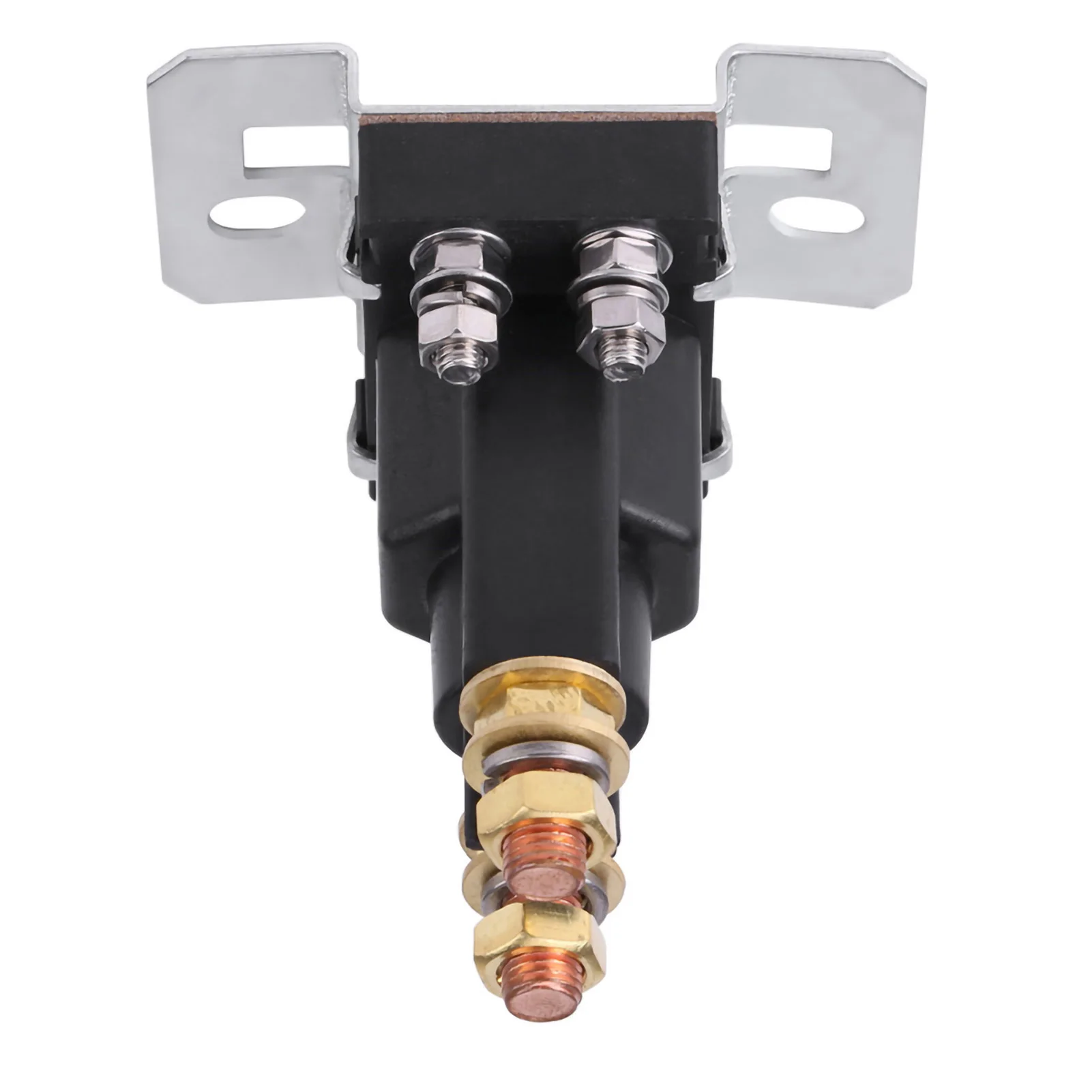

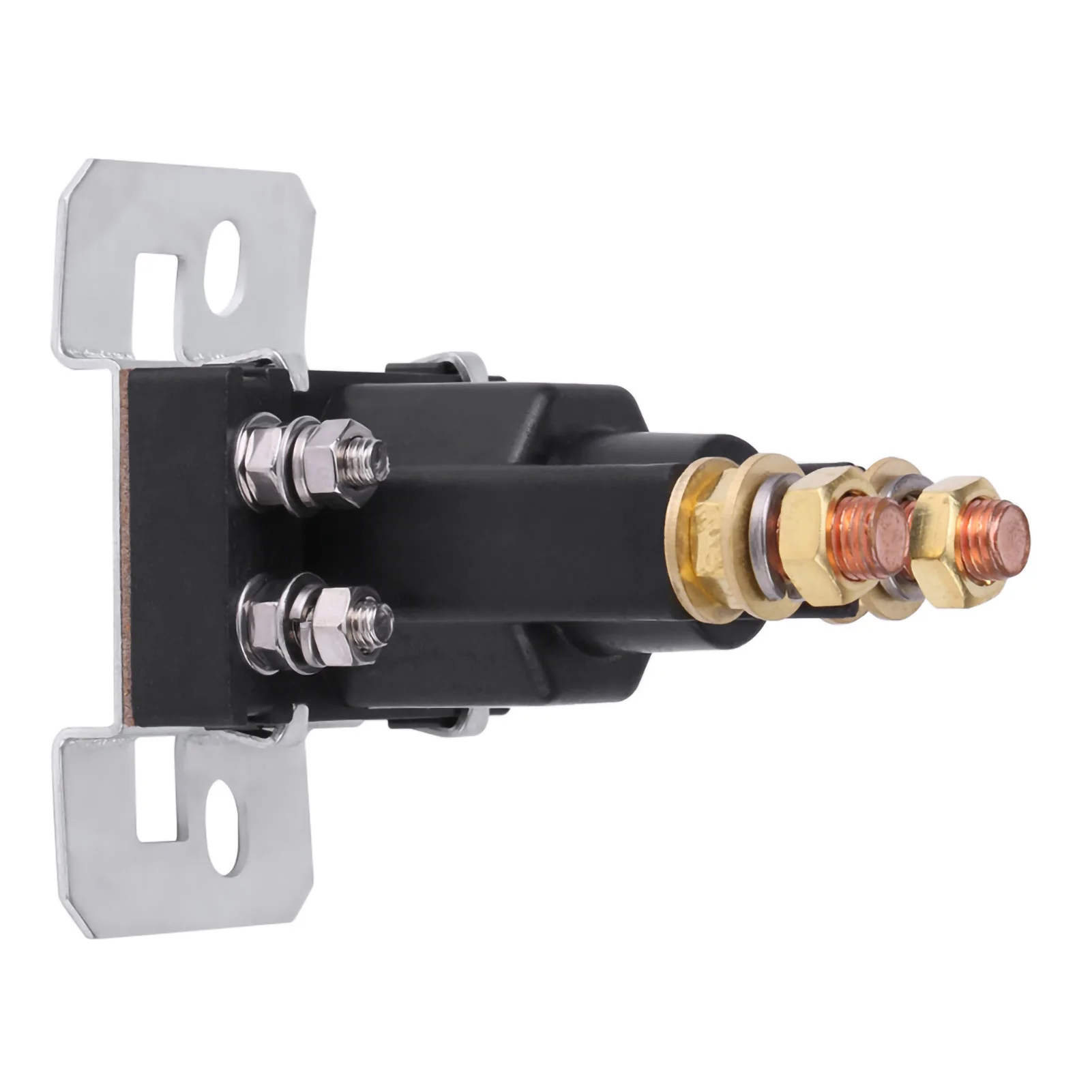

High Current Starter Relay 500A DC 12V SPST Auto Start Contactor
It help extend battery life.
Universal 12V applications.
Prevents primary battery dis.
Made of water resistant black phenolic plastic.
The main function of this product is to switch on, it can be used alone, it can be also connected to control to use, but this product does not include additional control relay, and if the controller is connected, it mainly used in the dual battery.
Specifications:
Product series: auto relay
Contact load: high power
Contact switching current: 500A
Contact switching voltage: 7.8VDC
Contact form: type
Rated current: 500A
Protective features: sealing type
Coil power: 12V DC
Weight: 235g
CONTACT DATA
Contact materialAgSn0_27In_20_33
Contact form1H(1A)
Contact Ratings500A
Contact Resistance100m at 6VDC 1 A
Switching Current 500A
Switching Voltage14VDC
Switching Power 500A
Life Expectancy Electrical100,000 Operations(at 30 Operations/minute)
Life Expectancy Mechanic10,000,000 Operations
COIL SPECIFICATION
Nominal Voltage (VDC)Coil Resistance() Operate Voltage (VDC)Mix Release Voltage (VDC) Applicable Voltage (VDC)
121681.214
9CHARACTERISTICS:
Temperature Range-30~80℃
Vibration Resistance10-55Hz,1.5mm
Shock Resistance Operations Extremes Damage Limits 50g
100g
Humidity40-85%
Insulation Resistance100mΩ min at 500vdc
Safety Standard
Dielectric Strength Between Open Contacts2000VAC(for 1 minuter/s)
Between Contacts and coil1500VAC(for 1 minuter/s)
Operate Time50ms
Release Time50ms
Package Included:
1 x Heavy current relay
