SPECIFICATIONS

Brand Name: FYSETC

Choice: yes

High-concerned chemical: none

Item Type: Cleaning Needle

Origin: Mainland China

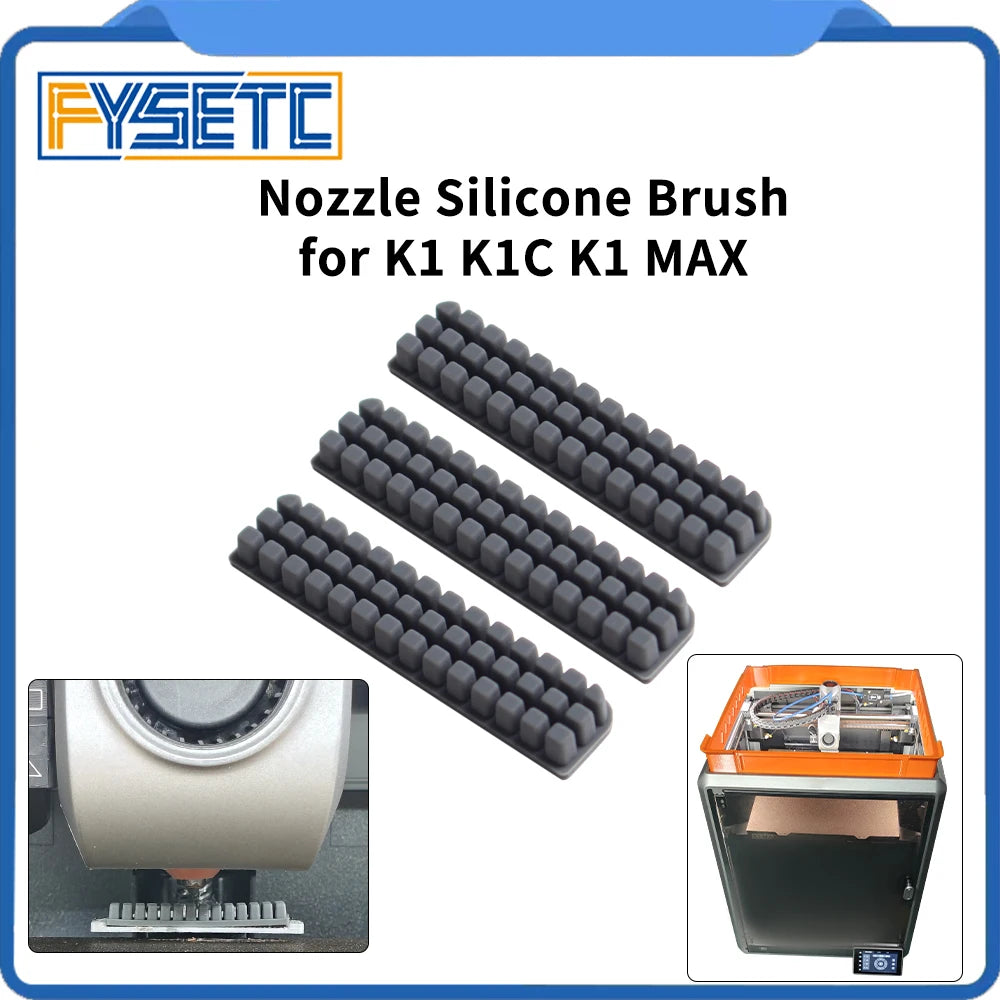

For Creality K1 K1C K1MAX Nozzle Silicone Brush 3D Printer Nozzle Cleaner Tool for K1 Series 3D Printer

1. Applicable models: Tuozhu A1 and Chuangxiang KI/K1 MAX. Of course, if you can design the base, it is suitable for almost all models.

2. Features: Simple and convenient installation, can effectively remove the residual consumables from the nozzle.

3. K1/K1 MAX models:

Print link: https://www.thingiverse.com/thing:6755415

Special recommendation: Use high temperature resistant consumables to print ABS, PA-CF, etc.)

4. Operation method: Modify the slicing software script to drive the machine to brush the cleaning brush before printing. Take K1 MAX as an example

Modify the position of the starting gcode of the slicing software

Change

M140 S0

M104 S0

START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]

to:

M140 S0

M104 S0

START_PRINT EXTRUDER_TEMP=[nozzle_temperature_initial_layer] BED_TEMP=[bed_temperature_initial_layer_single]

G1 Z10 Y305 X120 F3000 ; Go down

G1 Z4 F3000 ; go down G1 X170 F9000 G1 X120 F9000 G1 X170 F9000 G1 X120 F9000 G1 280F9000
