SPECIFICATIONS

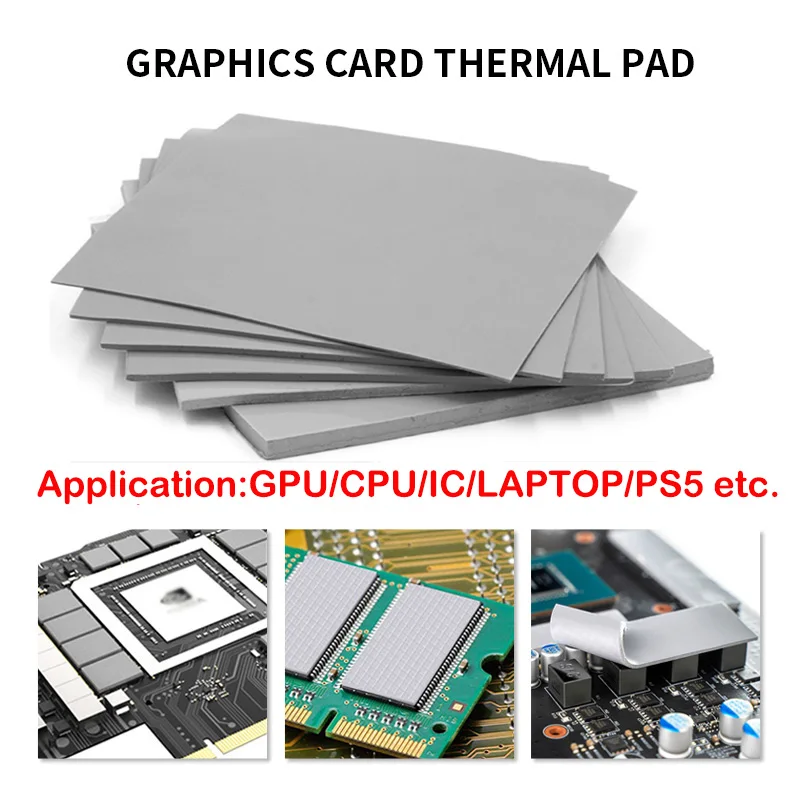

Application: GPU/CPU/PC/Video card/laptop/other electronic equipment

Brand Name: 7 SUBZERO SEVEN

Color: Grey

Hardness: 30-55

High-concerned chemical: none

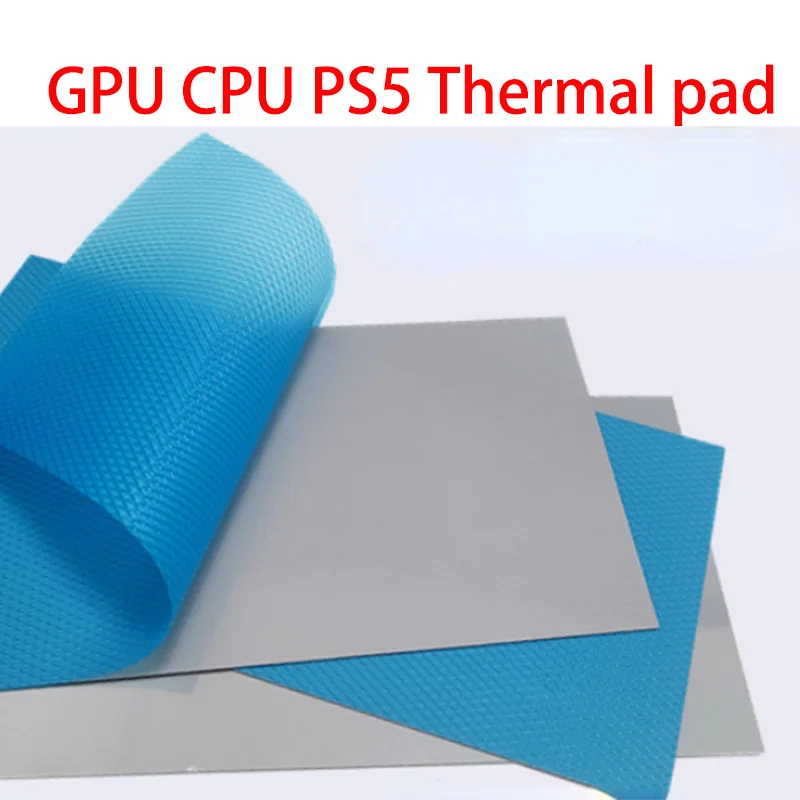

ITEM: Factory OEM Thermal pad

Material: others

Model Number: thermal pad

Origin: Mainland China

Thermal Conductivity: 24

Thickness: 0.5/0.75/1.0/1.25/1.5/2.0/2.5/3.0mm

Type: Thermal Pad

Thermal pad support customization and wholesaleplease contact us

(Customize: size/thickness/thermal conductivity/color/packaging)

Color: Gray

Density: 3.1±02g/cc

Hardness: 30-55

Thermal conductivity: 24/22/20/18.6/16.5W/mK

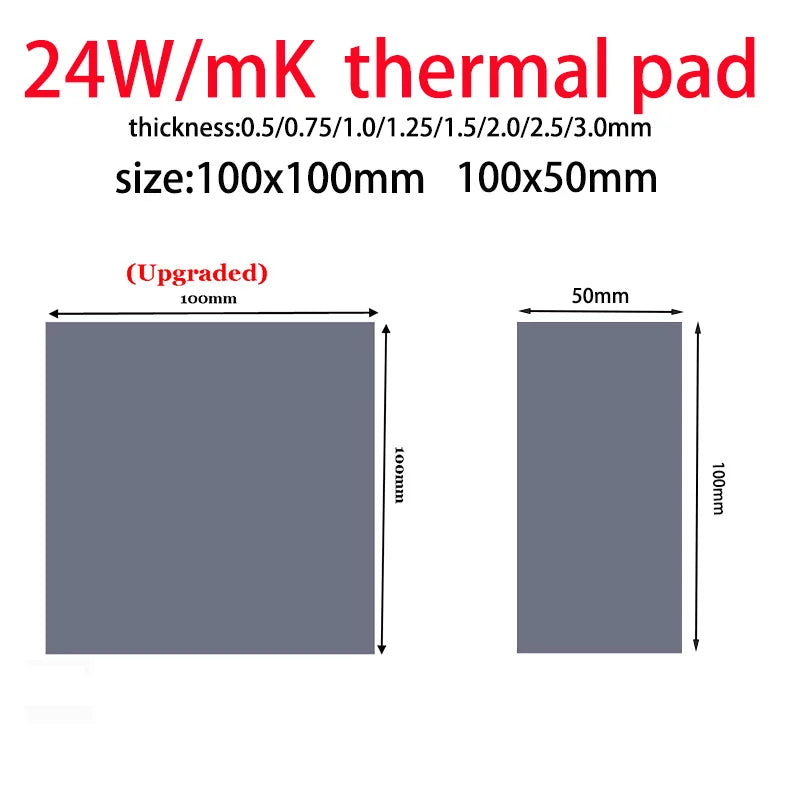

Size:100mm*100mm/85*45mm/100*50mm/120*20mm/120*120mm

Thickness0.5/0.75/1.0/1.25/1.5/2.0/2.5 /3.0 mm

Temp. : -40C~220C

Breakdown voltage: 9KV/mm

Corrosive: none

Material: Silicone

Package include : 1 pcs 100mm*100mm thermal pad(with packaging) ......(with packaging)

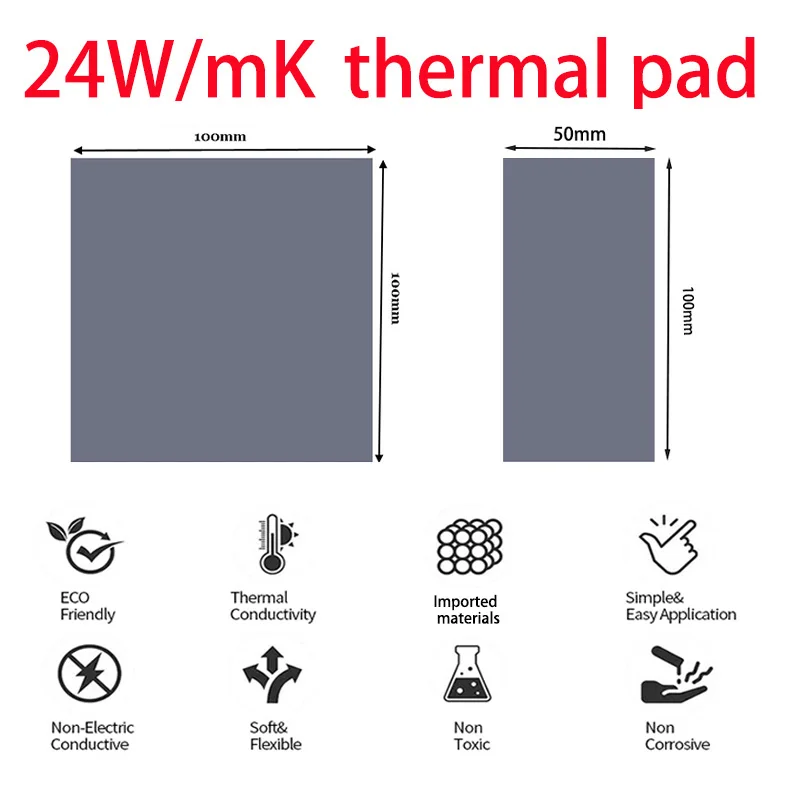

Features:

1: Soft , with a natuer viscosity

2: Good heat conduction, very good malleability

3: Easy to cut, easy to apply
4:Non-conductive. Non-corrosive, Non-curing and Non-toxic.

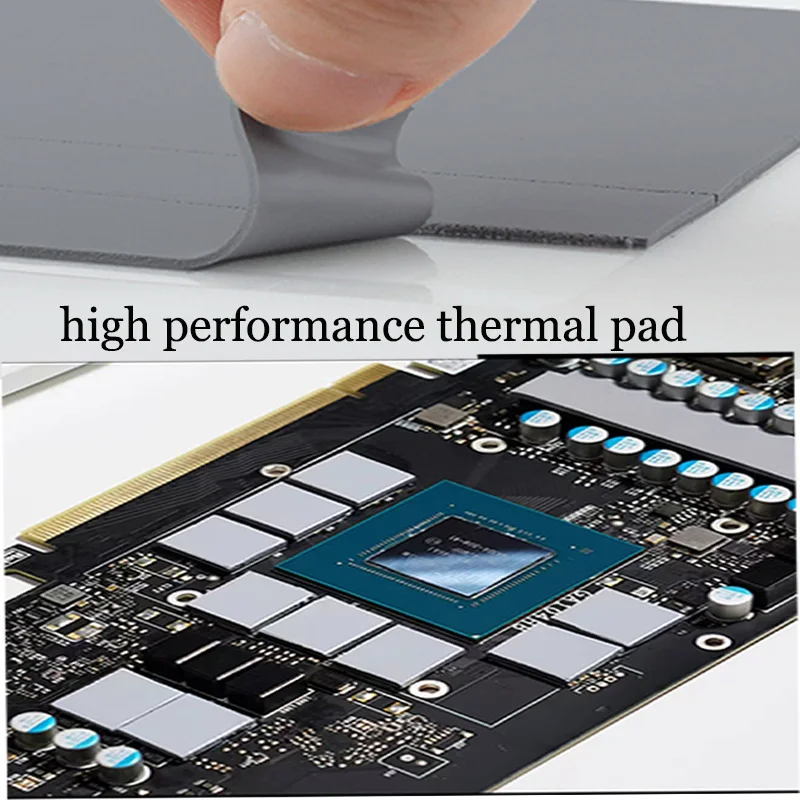

5:It can be used for heating elements such as CPU, GPU, graphics card, memory, mining machine, SSD solid state drive, notebook computer, game equipment, LED, server, household appliances, radiator, capacitor and resistor.   DRAM memory modules, communication equipment car control devices, and gaming equipment, etc.

Remove the old thermal pad:

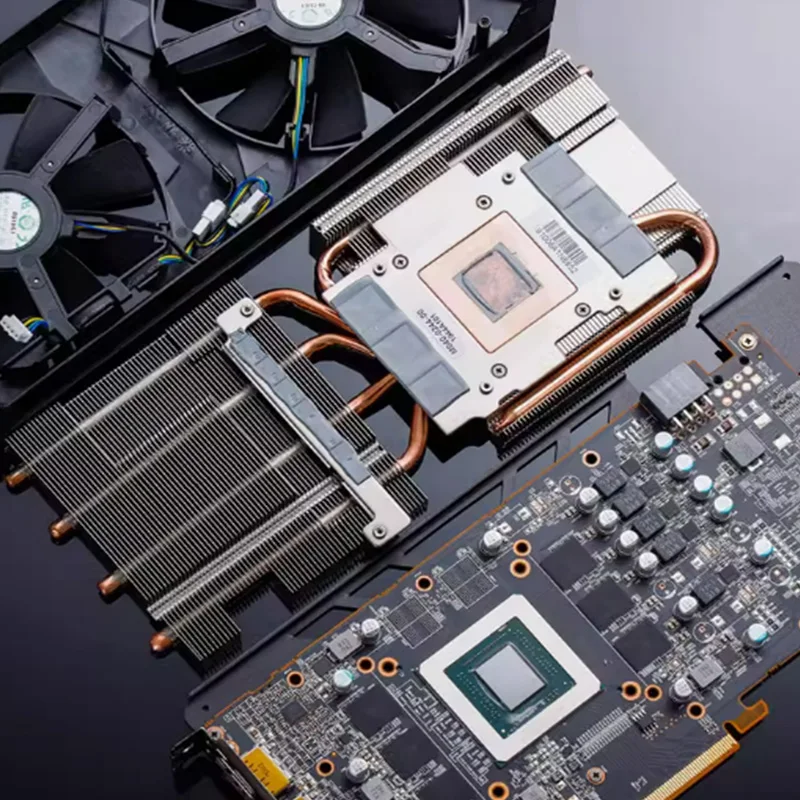

every time the radiator is removed or installed. Aged thermal pads need to be removed. Clean up thoroughly. And use a new thermal pad. Otherwise, the cooling effect will be affected.

Thermal pad size and thickness description:

The thermal conductivity is the same for each thickness. Thermal pads can be purchased in various thicknesses and sizes. Users can also cut them to desired size.

FAQ:

How to choose the size you need.

1: Calculate the size of each location that needs to be cooled.

2: Calculate the thickness of the thermal pad according to the gap between the boards.

3: The thermal pad is soft. The thickness needs to be increased by 0.5-1.0mm in the calculation. Fits tightly after installation squeeze. Better heat dissipation.

4: When the thickness of the purchased thermal pad is insufficient, it can also be used in superposition.

5: The heat dissipation effect is best only when the two sides of the thermal pad are closely fitted and not crushed.

6:Thermal pads can be combined with thermal grease, ceramic sheets, etc. to achieve better results

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3mm measuring deviation due to manual measurement.
