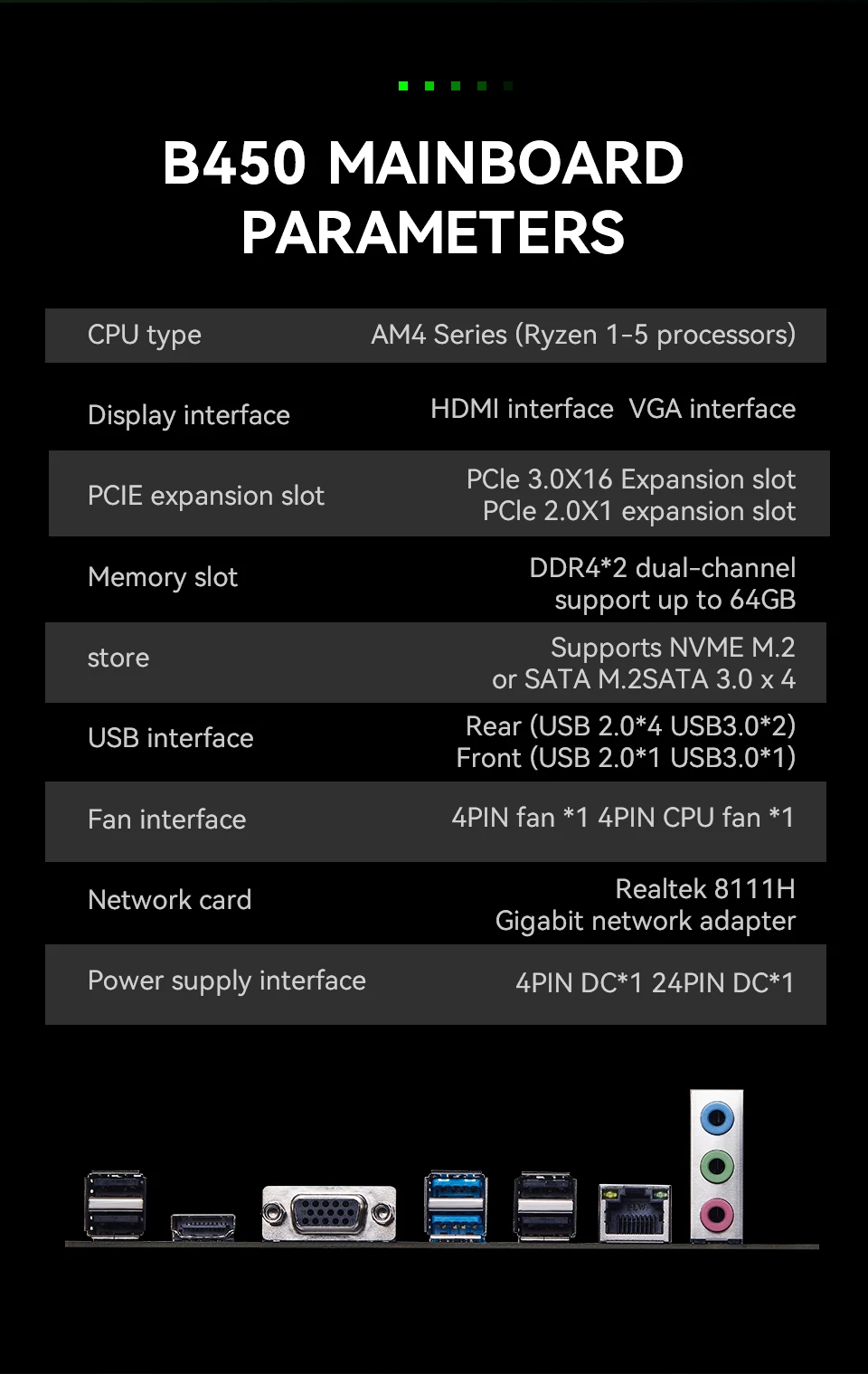

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45,VGA (D-Sub),COM

Battery Included: no

Brand Name: QIYIDA

Chipset: AMD B450

Chipset Manufacturer: AMD

Choice: yes

High-concerned chemical: none

Maximum Ram Capacity: 64 GB

Memory channel: Double

Number Of Memory Slots: 2

Number of M.2: 1

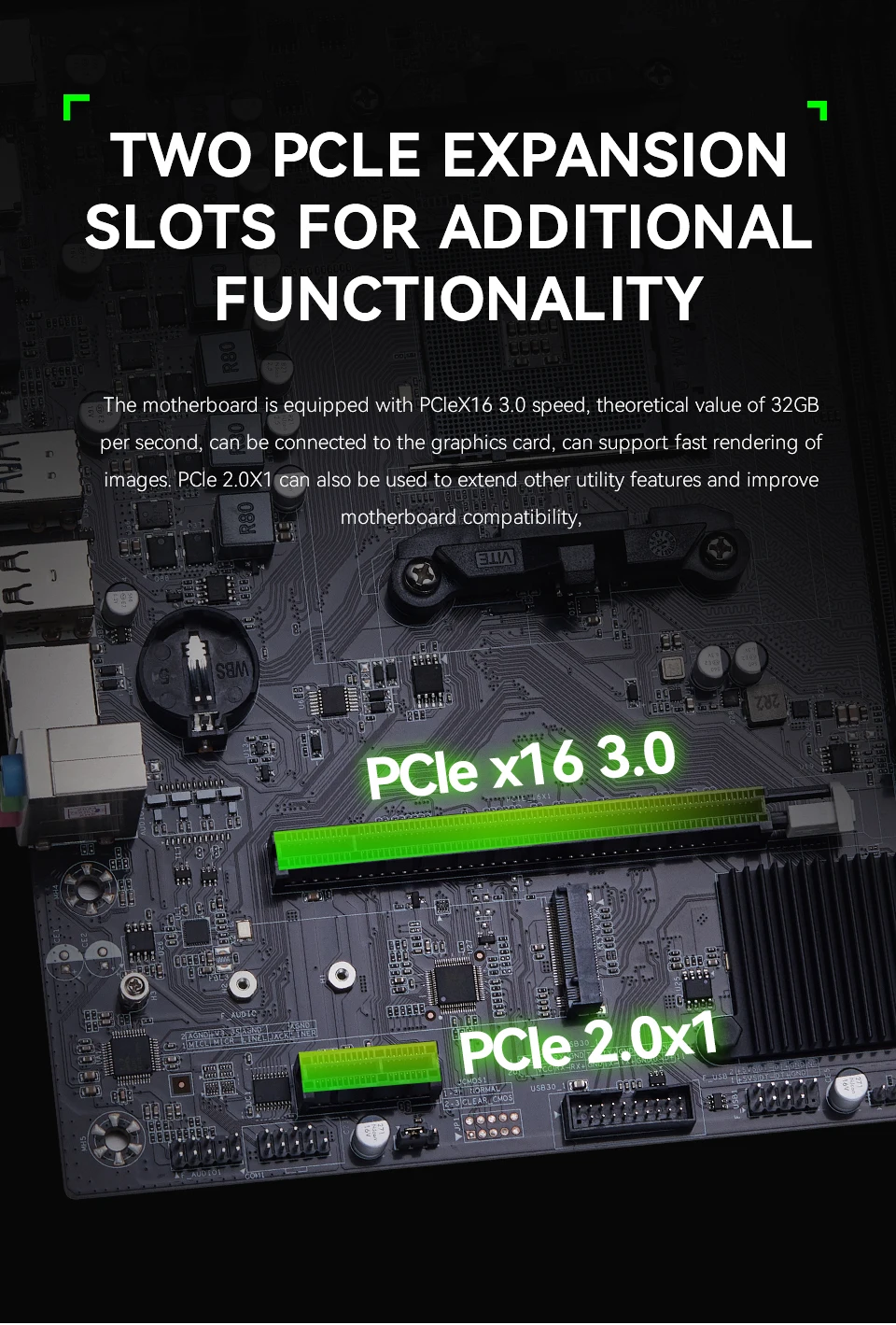

Number of PCI: 2

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

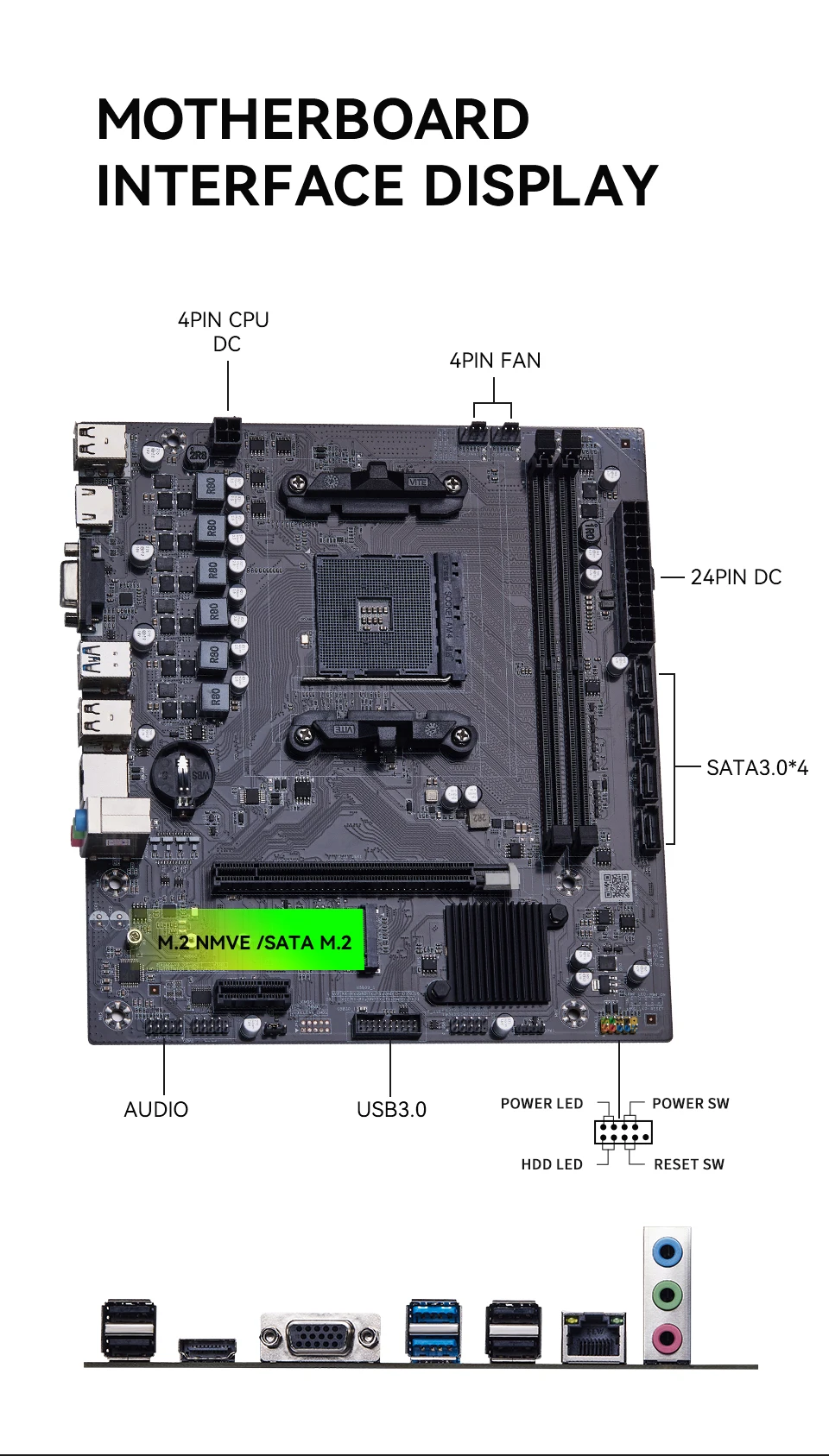

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),PWR_FAN Connector,4-pin +12V Power Connector

Onboard LAN: 1x RJ45

Origin: Mainland China

PCI - E standards: PCI-E 3.0

Package: Yes

Processor compatibility: AMD Ryzen 4000 Series-R3,AMD Ryzen 5000 Series-R5,AMD Ryzen 3000 Series-R5

RAID Supported: Yes

Socket Type: AM4

Special Features: NONE

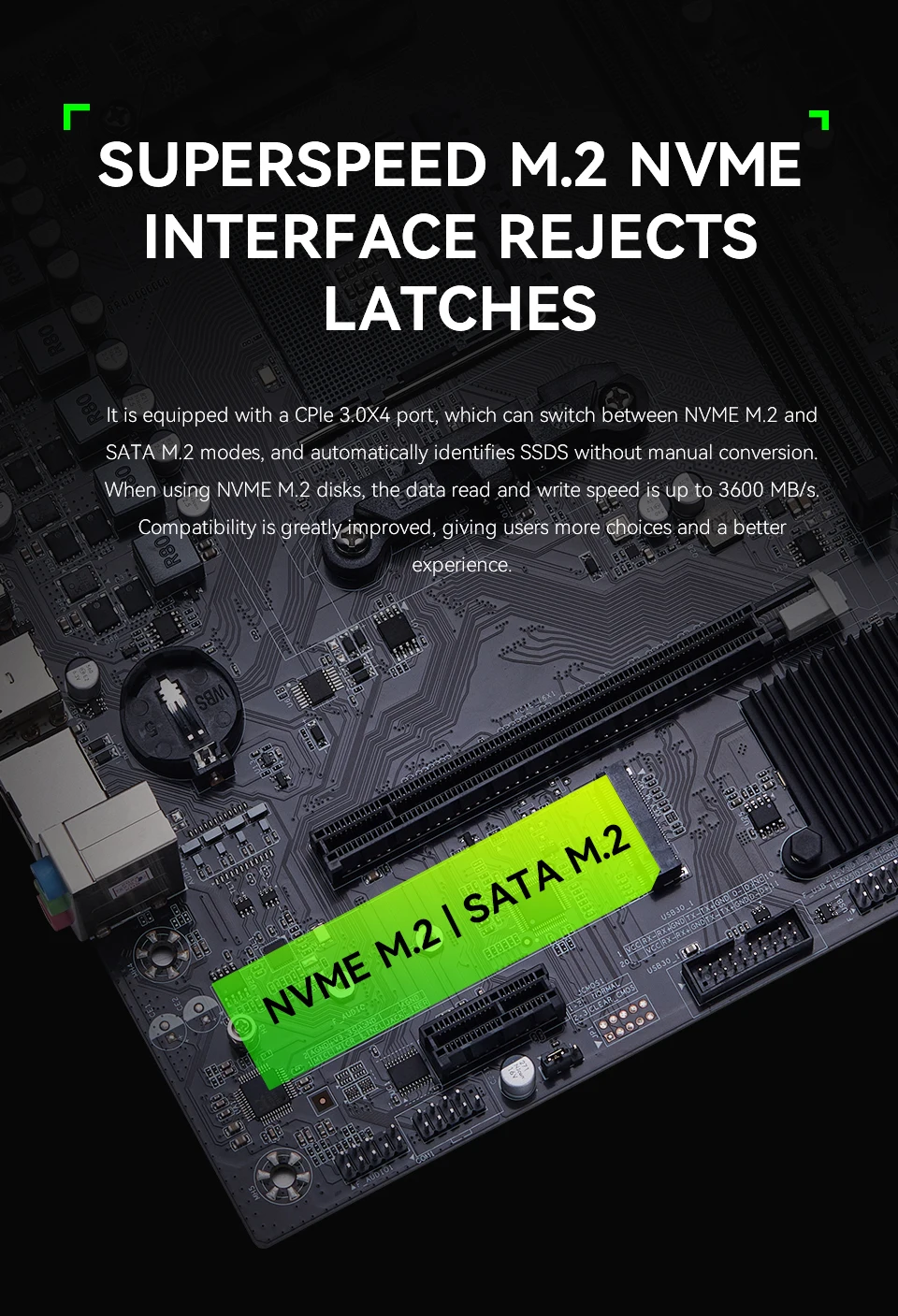

Storage Interface Type: M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Usage Scenario: Gaming,Audio & Video,Household,Office,Video Production,others

With CPU: No

Installation precautions: Please use desktop memory for memory, and do not use Intel dedicated memory as it may cause the computer to not start properly.

Note :System installation

Enter BIOS: After pressing the computer power button, keep pressing the DEL key (do not press the DEL key on the mini keyboard).
Startup shortcut key: After pressing the computer power button, continuously press F11
Supports automatic startup upon disconnection, timed startup, no disk, network wake-up.

Supported hard drives: SATA2.5 inch solid-state drives, SATA3.5
Inch mechanical hard drive, NGFFM. 2 solid-state drive, NVMEM. 2 solid state drive State hard drive (PCIe 3.0x4,)

Chipset models: X470, B450, etcCPU supported: Ryzen 1/2/3/4/5 Series Processor ,AM4 pin, Ryzen 1-5 generation CPUs, Ryzen 1000 series, Ryzen 2000 series, Ryzen 3000 series, Ryzen 4000 series, and Ryzen 5000 series.

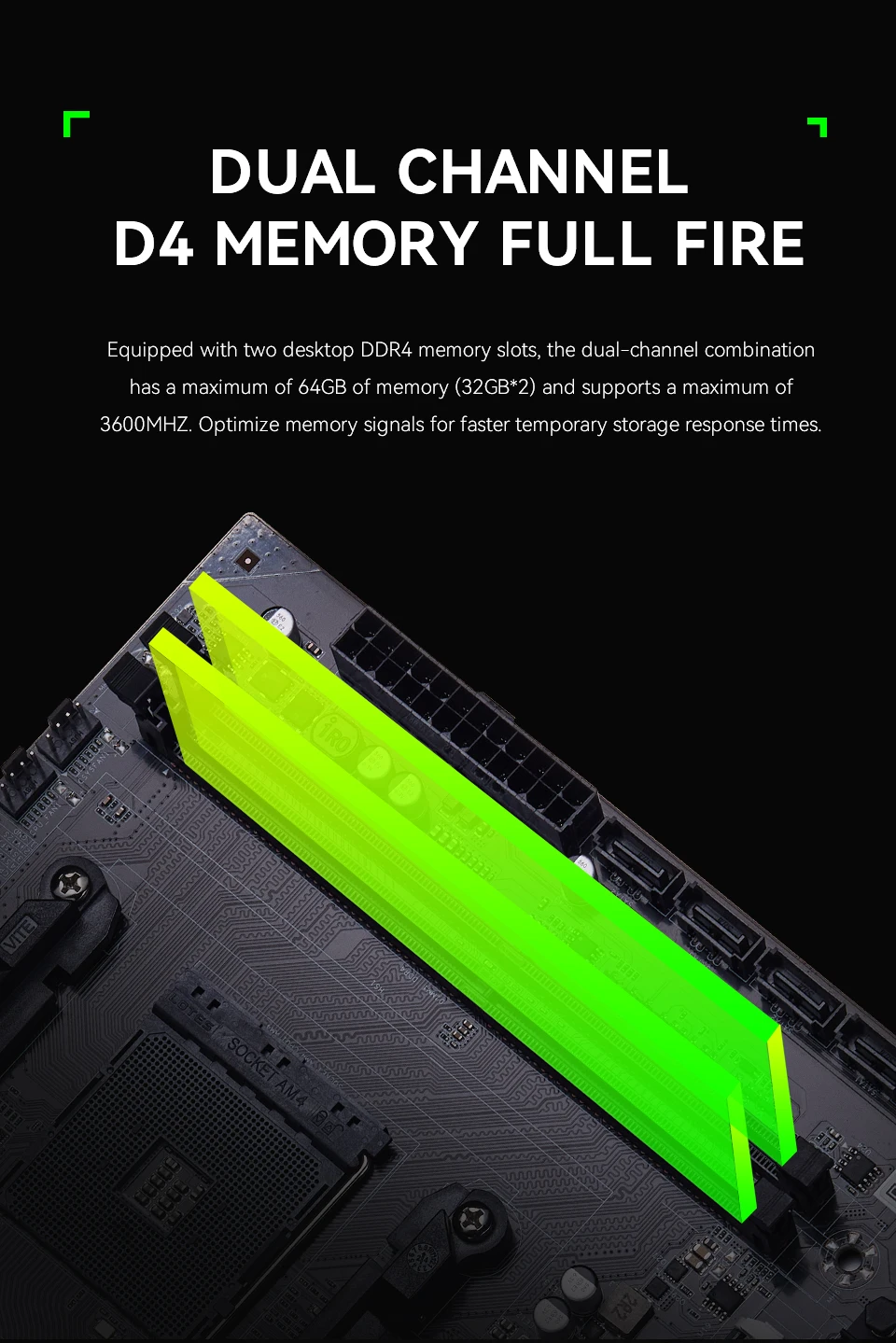

Supported memory: Desktop DDR4, with a maximum capacity of 64GB,
Dual channel, supports up to 3600MHz frequency (different generations of CPUs support different maximum memory frequencies).

Size: 22cm×20cm

Network card model: Gigabit

Note :

1:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

2:We show photos of motherboard, pictures are for reference only, subject to our available products.
